Marlin+ 6

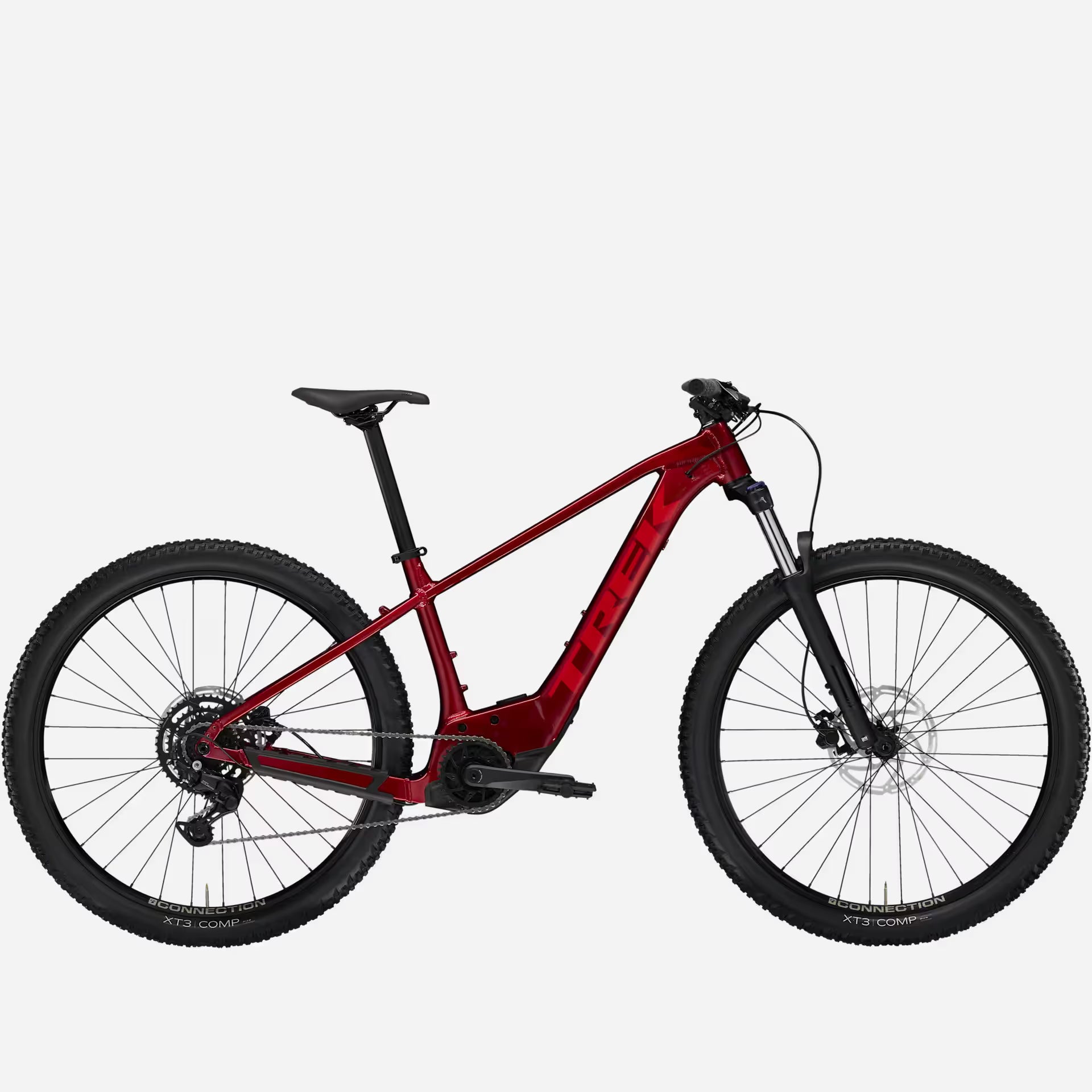

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.

Frameset

*Frame

Size: XS

Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle

Size: S , M , L , XL

Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle

*Fork

Size: XS

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel

Size: S , M , L , XL

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Wheels

Hub front

Shimano TC500 alloy, centerlock, 110x15mm thru axle

Hub rear

Shimano TC500 alloy, centerlock, 148x12mm thru axle

Skewer rear

Bontrager Switch thru axle, removable lever

Rim

Bontrager Connection, double-wall, 32-hole, 20mm width, Presta valve

*Tire

Size: XS , S

Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40''

Size: M , L , XL

Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40''

Max tire size

Frame: 29x2.60" (XS: 27.5x2.60"), Fork: See manufacturer

E-system

Battery

Bosch CompactTube 400Wh

Charger

Bosch standard 2A, 110V, smart system

Computer

Bosch Purion 200

Motor

Bosch Active Line Plus

E-bike Classification

Class 1

Drivetrain

Shifter

Shimano U4000, 9 speed

Rear derailleur

Shimano CUES U4000

Crank

FSA CK-220, 165mm length

Chainring

FSA, 32T, steel

Cassette

Shimano LINKGLIDE LG300, 11-46, 9 speed

Chain

Shimano LG500, 9/10/11 speed

Pedal

VP-536 nylon platform

Max chainring size

1x: 36T, min 32T

Components

Saddle

Bontrager Verse P3, steel rails

*Seatpost

Size: XS , S

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: M

Bontrager alloy, 31.6mm, 12mm offset, 360mm length

Size: L , XL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length

*Handlebar

Size: XS , S

Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Size: M , L , XL

Bontrager alloy, 31.8mm, 15mm rise, 750mm width

Grips

Bontrager XR Endurance Comp, lock-on

*Stem

Size: XS

Bontrager Comp, 31.8mm, 7 degree, 35mm length

Size: S , M , L

Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: XL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Headset

Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom

Brake rotor

Tektro, centerlock, 203mm

Brake Set

Tektro HD-M275 hydraulic disc

Rotor size

Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
